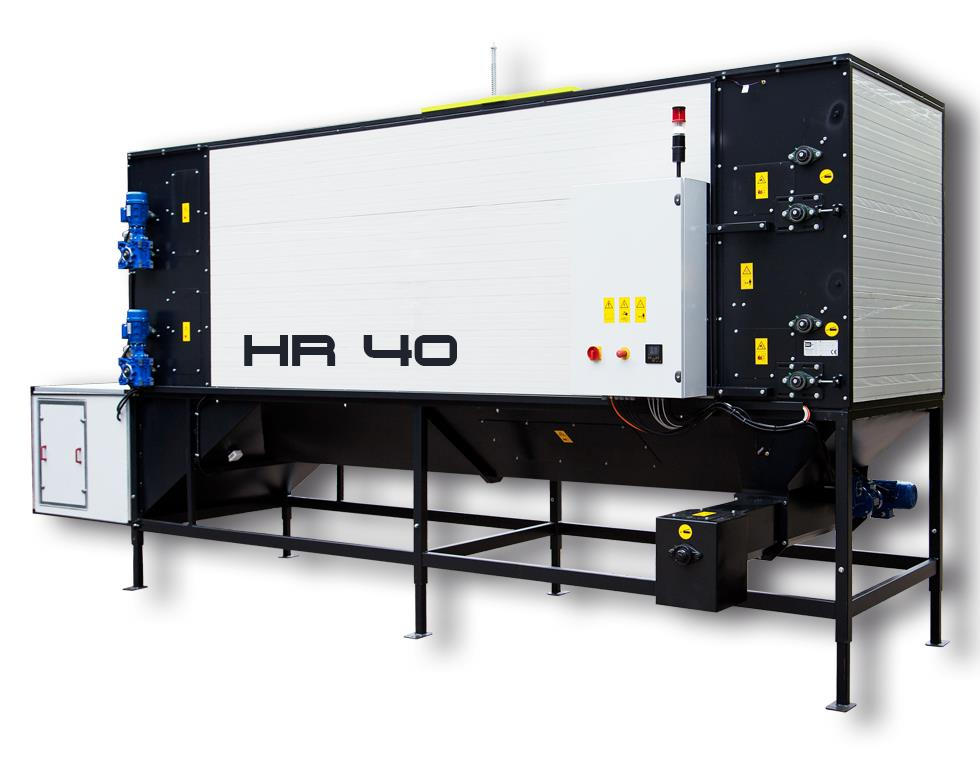

The wood chip dryer is designed for drying wood chips and wood shavings.
- Hot air dried and sieved quality wood chips.
- Minimal power consumption for high drying efficiency.
- Optimal 4-layer drying by constantly turning the wood chips.
- Compact solution, small space requirement.
- Suitable especially for wood chip heating and wood gasification systems for power generation.
- The sieved fine parts can be discharged separately or added back again to the main material.

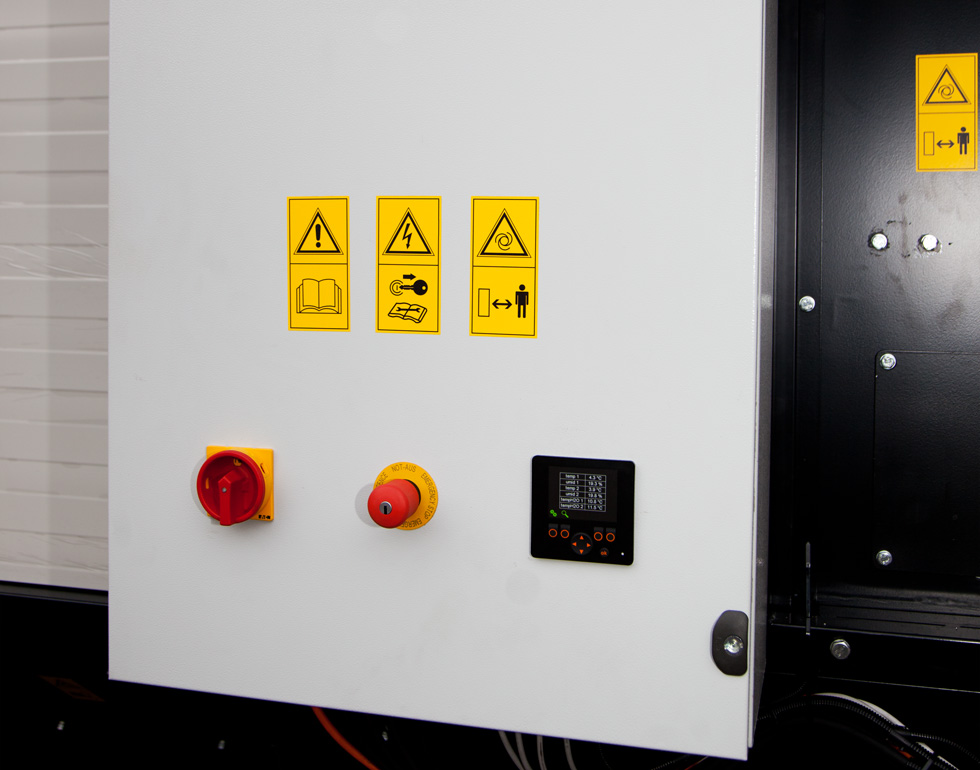

- Simple control with automatic regulation of the humidity.
- Remote maintenance via PC or mobile phone with fault notification.
- Optional: conveyor units for loading and discharge the material.
The enery-saving Power-Dryer!
Technical specifications
|
HR - 40 |
|
Drying capacity
|
1.2 - 2.0
|
m³/h |
| Required water temperature |
min. 60 - 90 |
°C |
Required heat capacity
|
120 |
KW
|
Residual humidity wood chips
|
bis 5 |
%
|
Max. size wood chips
|
50 x 50 |
mm
|
| Required electrical connection |
6.0 |
KW
|
| Length x width x height |
6,100 x 2,150 x 3,550 |
mm
|
| Air outlet |
Ø 600 |
mm
|
| Weight |
2,400 |
kg
|
Invented by
Hofer Energy
